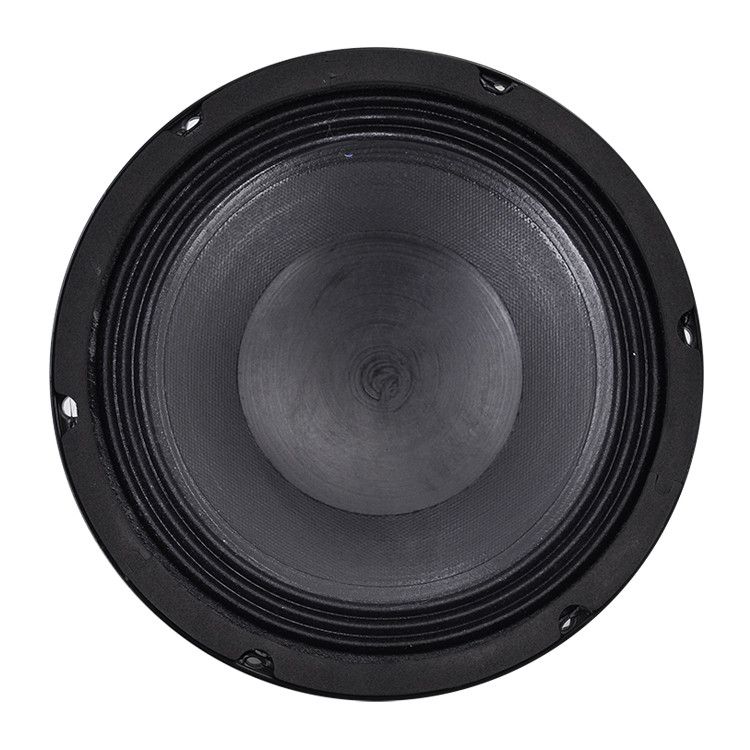

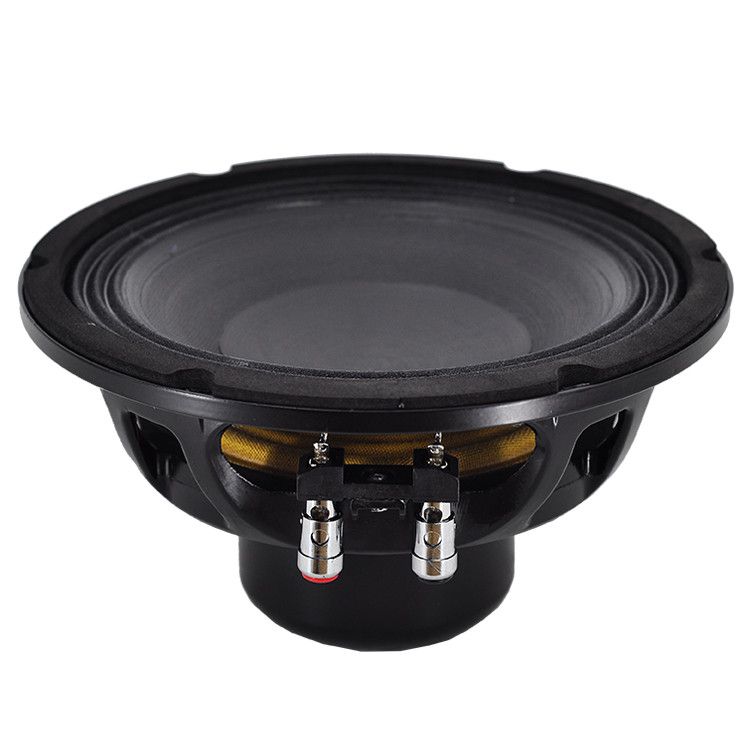

TN-8NW650

TN-8NW650

LF Loudspeakers 8inches

250

Watts RMS

55-5000Hz

Response

95 dB

Sensitivity

Nominal impedance

NOMINAL SPECIFICATIONS
Nominal Diameter 8/200 in/mm
MAX Power 400 Watts
RMS Power 200 Watts
Impedance 8 Ohm
Resonance Frequency 55 Hz
Frequency Response 55-5000 Hz
Sensitivity(1W/1m) 95 dB
Voice Coil Diameter 2.5''/65mm
Voice Coil Material KSV(inside-outside)
Magnet Neodymium
THIELE & SMALL PARAMETERS
FS  55 Hz
RE  5.4 ohm
Qms 0.2
Qes 0.19
Qts 3.4
BL  16 T/m
MMS 27 grams
Xmax 4 mm
Sd 227 cm²
Efficiency  1.7%
Le 1.3mH
EBP 275 Hz
MOUNTING AND SHIPPING INFORMATION
Overall Diameter 8.3 /212 in/mm
Bolt Circle Diameter 7.7/196in/mm
Baffle cutout Diameter 16.6 /420 in/mm
Depth 9.3 /186 in/mm
Net Weight 2.3 kgs
Shipping Weight 2.6 kgs
Shipping Box 24.5X24.5X15.5cm
