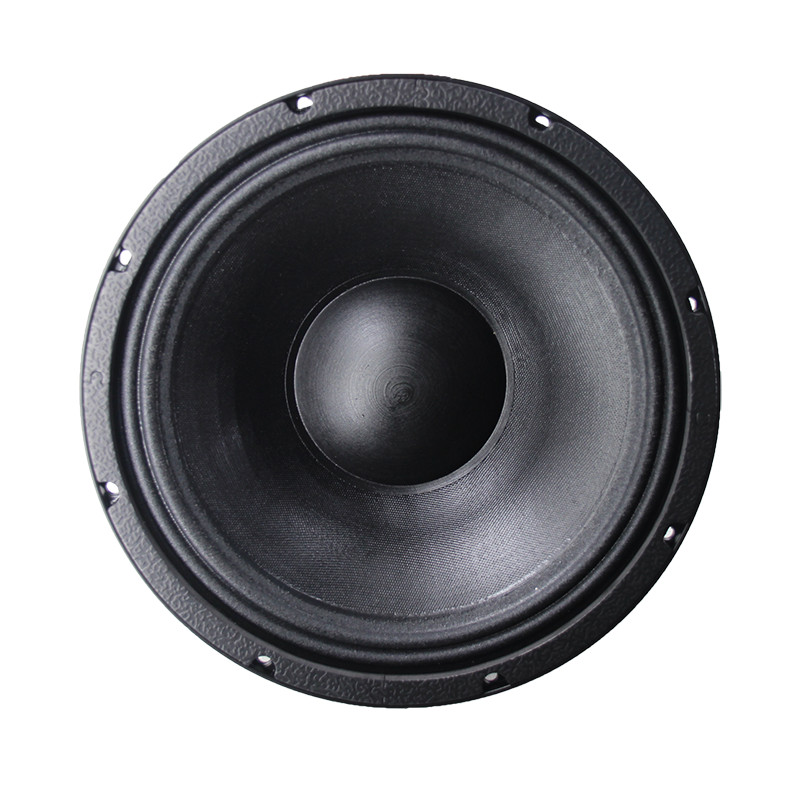

| ELECTRO ACOUSTIC SPECIFICATIONS | ||
| Nominal Chassis Diameter | 12/305 in/mm | |
| MAX Power | 1600 Watts | |
| RMS Power | 800 Watts | |
| Impedance | 8 Ohm | |
| Resonance(natural) Frequency | 56 Hz | |
| Frequency Response | 56-3050 Hz | |
| Sensitivity(1W/1m) | 97 dB | |
| Voice Coil Diameter | 3. 5″/89.55mm | |
| Windling material | GPICCAW (inside-outside) | |
| Magnet | 136 Oz 220*95*25mm | |
| MOUNTING/SHIPPING INFORMATION | ||
| Overall Diameter | 12/315 in/mm | |
| Bolt Circle Diameter | 11. 7/297 in/mm | |
| Baffle cutout Diameter | 11. 1/281 in/mm | |
| Depth | 5. 8/148 in/mm | |
| Net Weight | 10. 65 kgs | |
| Shipping Weight | 11. 5 kgs | |
| Shipping Box | 33. 5X33. 5X17cm | |
| THIELE SMALL PARAMETERS | |
| FS Hz | 56 Hz |
| Vas | 48 dm³ |
| RE Ohms | 5. 4 ohm |
| Qms | 7. 9 |
| Qes | 0. 26 |
| Qts | 0. 25 |
| BLT/m | 22 T/m |
| MMS(grms) | 64 grams |
| Xmax(mm) | 3. 7 mm |
| Sd | 530 cm² |
| Efficiency % | 3. 2 % |
| EBP | 215 |
