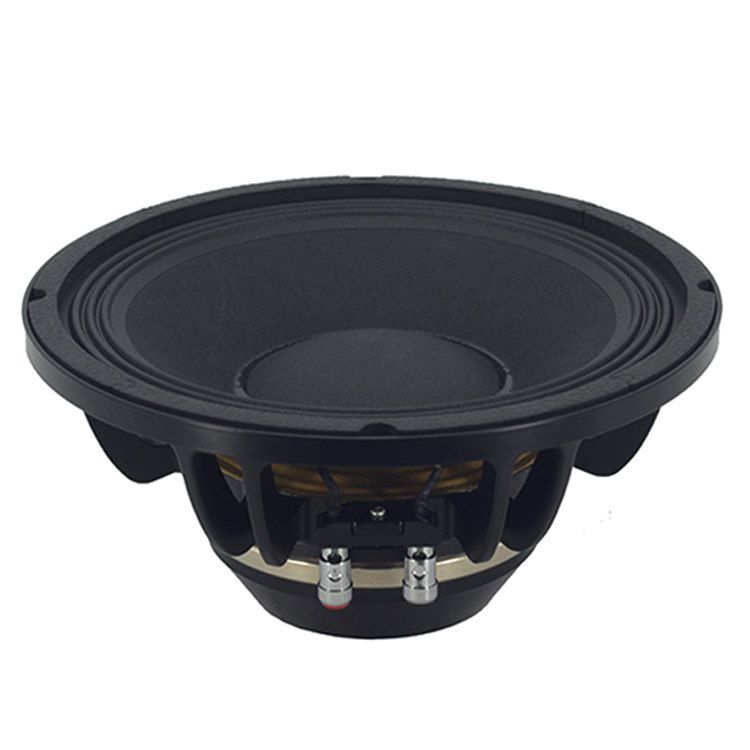

| NOMINAL SPECIFICATIONS | |
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 600 Watts |
| RMS Power | 300 Watts |
| Impedance | 8 Ohm |
| Resonance Frequency | 64 Hz |
| Frequency Response | 64-4000 Hz |
| Sensitivity(1W/1m) | 96 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | GSV(inside-outside) |
| Magnet | Neodymium |
| THIELE & SMALL PARAMETERS | |
| FS | 64 Hz |
| RE | 6.2 ohm |
| Qms | 9 |
| Qes | 0.34 |
| Qts | 0.32 |
| BL | 17 T/m |
| MMS | 39 grams |
| Xmax | 3.8 mm |
| Sd | 346 cm² |
| Efficiency | 1.9% |
| Le(1k Hz) | 0.11 mH |
| EBP | 200 Hz |
| MOUNTING AND SHIPPING INFORMATION | |
| Overall Diameter | 10.2 /260 in/mm |
| Bolt Circle Diameter | 9.7/246 in/mm |
| Baffle cutout Diameter | 9.1 /230 in/mm |
| Depth | 4.8 /123 in/mm |
| Net Weight | 4.85 kgs |
| Shipping Weight | 5.5 kgs |
| Shipping Box | 28.5X28.5X15cm |
