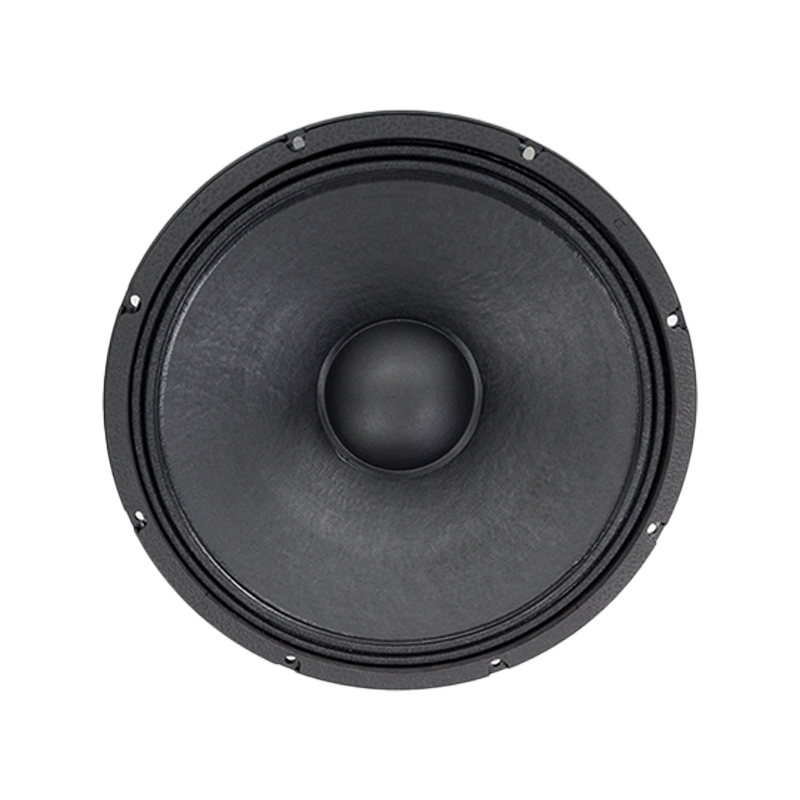

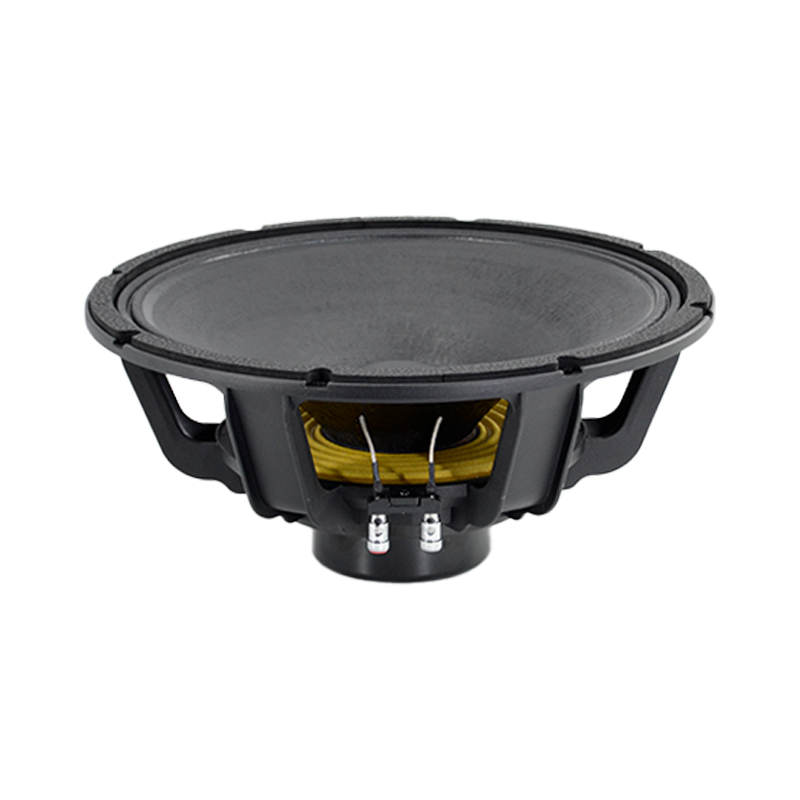

| ELECTRO ACOUSTIC SPECIFICATIONS | ||
| Nominal Chassis Diameter | 15/385 in/mm | |
| MAX Power | 1600 Watts | |
| RMS Power | 800 Watts | |
| Impedance | 8 Ohm | |
| Resonance(natural) Frequency | 50 Hz | |
| Frequency Response | 50-3500 Hz | |
| Sensitivity(1W/1m) | 98 dB | |
| Voice Coil Diameter | 3.5''/ 89mm | |
| Winding material | PICCAW (inside-outside) | |
| Magnet | Neodymium | |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 15.5/393 in/mm |
| Bolt Circle Diameter | 14.8/375 in/mm |
| Baffle cutout Diameter | 13.9/353 in/mm |
| Depth | 6.9/175 in/mm |
| Net Weight | 5.9 kgs |
| Shipping Weight | 6.4 kgs |
| Shipping Box | 40.5x40.5x20.5 cm |
| THIELE SMALL PARAMETERS | |
| FS Hz | 50 Hz |
| Vas | 121 dm³ |
| RE Ohms | 5.4 ohm |
| Qms | 13 |
| Qes | 0.60 |
| Qts | 0.57 |
| BL T/m | 16 T/m |
| MMS(grms) | 91 grams |
| Xmax(mm) | 16.7 mm |
| Sd | 800 cm² |
| Efficiency % | 4 % |
| EBP | 83 |
