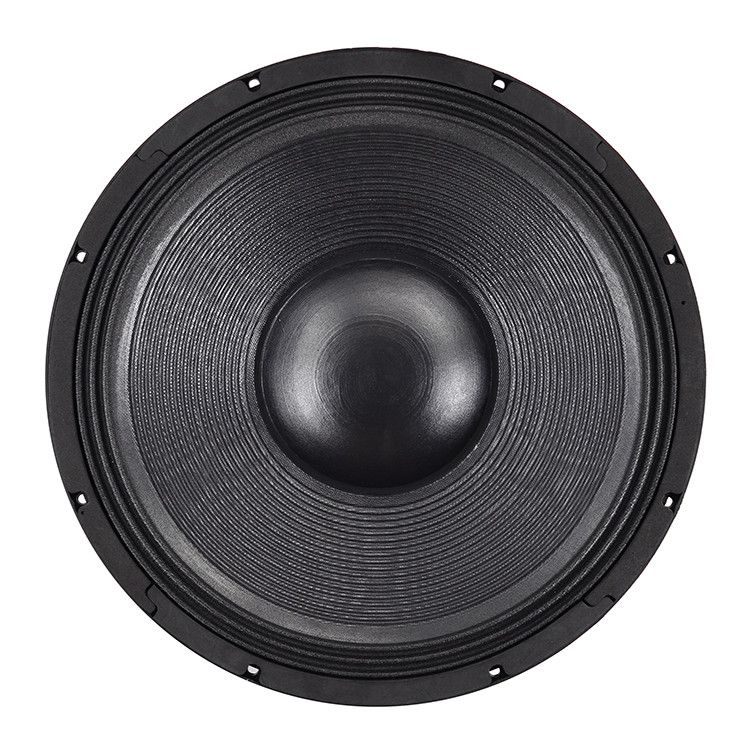

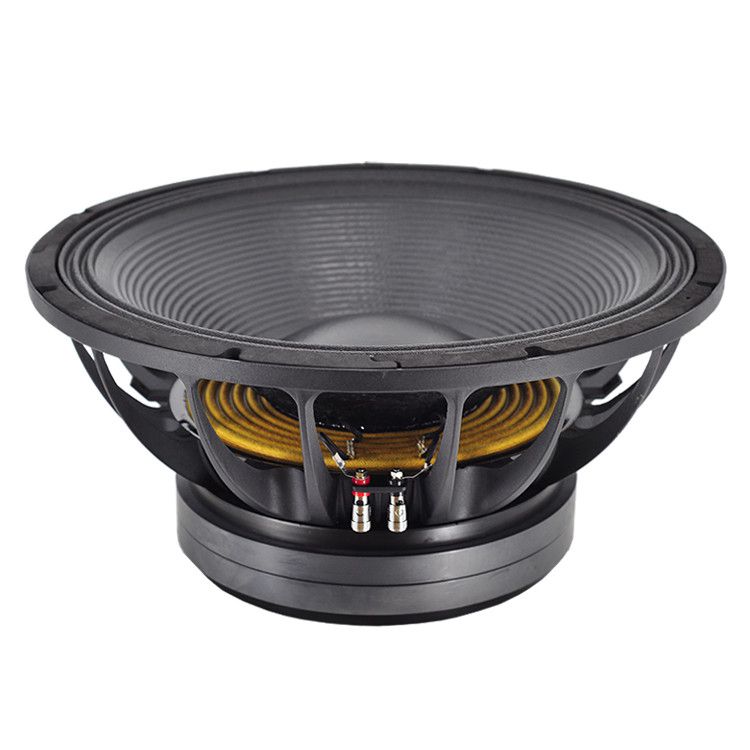

| NOMINAL SPECIFICATIONS | |
| Nominal Diameter | 18/460 in/mm |
| MAX Power | 32000 Watts |
| RMS Power | 1500 Watts |
| Impedance | 8 Ohm |
| Resonance Frequency | 28 Hz |
| Frequency Response | 28-1200 Hz |
| Sensitivity(1W/1m) | 96 dB |
| Voice Coil Diameter | 5.5''/140mm |
| Voice Coil Material | GSV(inside-outside) |
| Magnet | 309 Oz |
| THIELE & SMALL PARAMETERS | |
| FS | 28 Hz |
| RE | 5.2 ohm |
| Qms | 7.2 |
| Qes | 0.26 |
| Qts | 0.25 |
| BL | 34.7 T/m |
| MMS | 341 grams |
| Xmax | 14.5 mm |
| Sd | 1225 cm² |
| Efficiency | 1.6% |
| Le(1k Hz) | 2.5 mH |
| EBP | 112 Hz |
| MOUNTING AND SHIPPING INFORMATION | |
| Overall Diameter | 18/460 in/mm |
| Bolt Circle Diameter | 17.4/443 in/mm |
| Baffle cutout Diameter | 16.5 /420 in/mm |
| Depth | 8.5 /215 in/mm |
| Net Weight | 24.65 kgs |
| Shipping Weight | 26.65 kgs |
| Shipping Box | 48X48X23.5cm |
