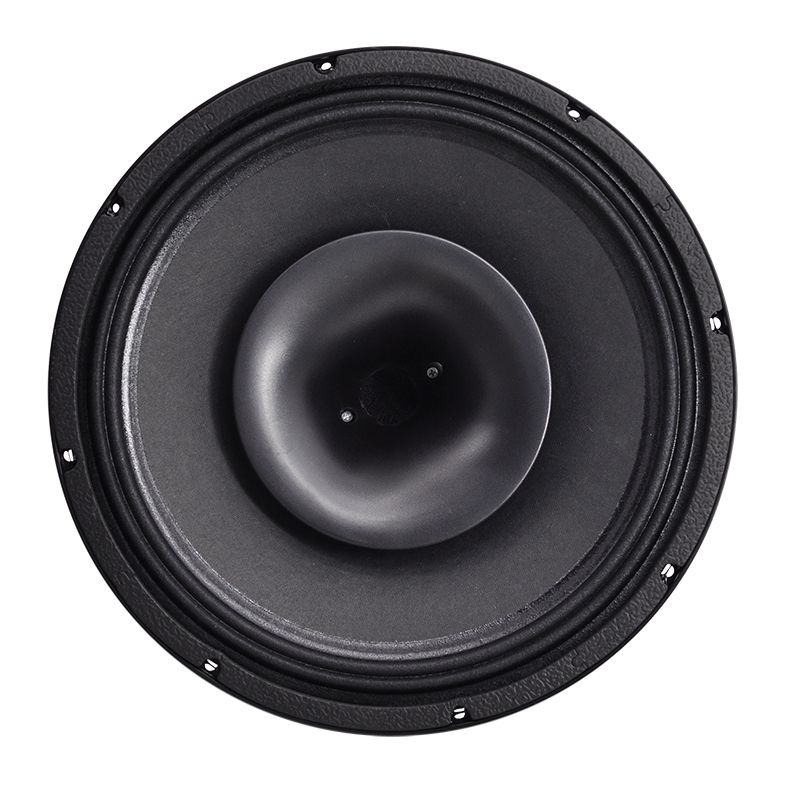

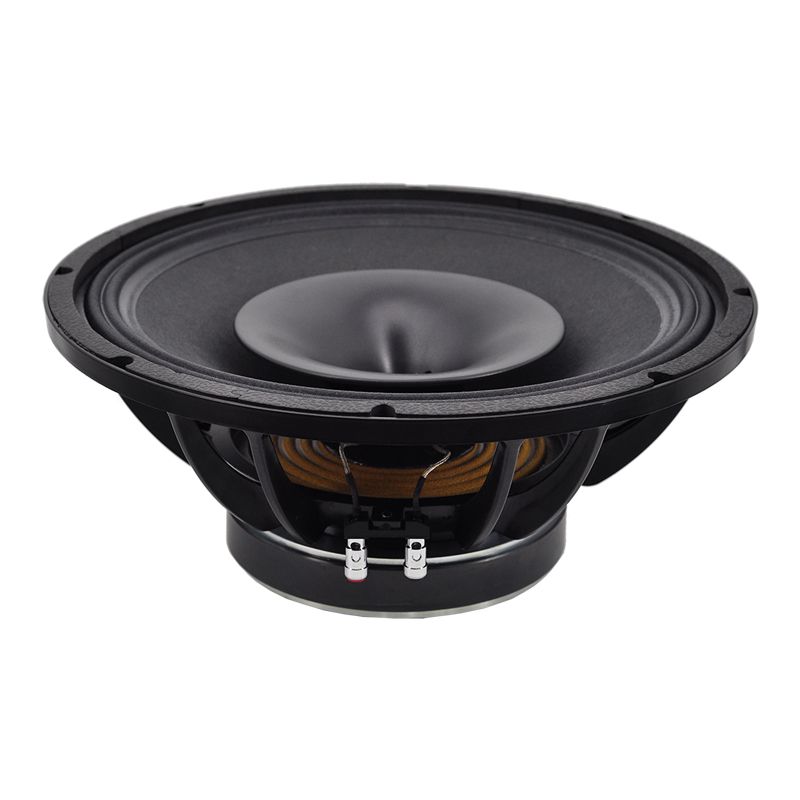

TN-15FHX76

TN-15FHX76

300

Watts RMS

44-18000Hz

Response

97dB

Sensitivity

Nominal impedance

NOMINAL SPECIFICATIONS
LF UNIT
Nominal Diameter 15/380 in/mm
MAX Power 600 Watts
RMS Power 300 Watts
Impedance 8 Ohm
Resonance Frequency 44 Hz
Frequency Response 44-18000 Hz
Sensitivity(1W/1m) 97 dB
Voice Coil Diameter 3''/75mm
Voice Coil Material GPI
Magnet 113 Oz

HF UNIT
MAX Power 80 Watts
RMS Power 160 Watts
Impedance 8 Ohm
Recommended Crossover 1 kHz
Frequency Response 2000-18000 Hz
Sensitivity(1W/1m) 106 dB
Voice Coil Diameter 3''/75mm
Voice Coil Material CCAR
Diaphragm Material Titanium
Flux Density 1.4 T
Inductance 0.14 mH
THIELE & SMALL PARAMETERS

FS  44 Hz
RE  5.6 ohm
Qms 6.2
Qes 0.32
Qts 0.3
BL  13 T/m
MMS 75 grams
Xmax 6.5 mm
Sd 855 cm²
Efficiency  1.5%
Le(1k Hz) 1 mH
EBP 133 Hz
MOUNTING AND SHIPPING INFORMATION

Overall Diameter 15.5 /393 in/mm
Bolt Circle Diameter 14.7/374 in/mm
Baffle cutout Diameter 13.9 /353 in/mm
Depth 7.68 /196 in/mm
Net Weight 8.9 kgs
Shipping Weight 9.9 kgs
Shipping Box 41.5X41.5X23..5cm
